Heavy Duty Line Array Speaker Truss Stand 20m/Sec Max Windspeed

Name: Heavy Duty Line Array Speaker Truss Stand 20mSec Max Windspeed
Brand: GF truss
Price: 200.00 USD

Wholesale Heavy Duty Line Array Speaker Truss Stand 20m/Sec Max Windspeed from china suppliers

Brand Name : GF truss

Model Number : GF-PA1000

Certification : BV TUV CE

Place of Origin : China

MOQ : 1

Price : $200.00 - $2500.00 / Set

Payment Terms : T/T

Supply Ability : 10000000

Delivery Time : 15 days

Packaging Details : Export package in carton or as requirement

Max Height : 9.8m

Max lift Height : 9.6m

Maximal load : 1000kg

Ballast weight : 130kg

Max windspeed : 20m/sec

Material : International Aluminum Alloy 6061-T6

System weight : 420kg

Color : Black/White

Usage : Performance,concert, show, wedding, celebration.

Product Name : PA tower

Contact Now

Heavy Duty PA Tower Line Array Speaker Truss Speaker Stand

1. Standard available Length in Meters and Feet

Meters	Feet
0.5M	1.64ft
1.0M	3.28ft
1.5M	4.92ft
2.0M	6.56ft
2.5M	8.20ft
3.0M	9.84ft
3.5M	11.48ft
4.0M	13.12ft

2. Product Description:

Height	6M	8M	10M
Max Loading	600KG	800KG	1000KG
Max Wind Speed	20/s	20/s	20/s
System Weight	220KG	270KG	420KG

3. Truss Specification:

Material: Aluminum Alloy 6061-T6 or 6082-T6
Size: 290mm*290mm for 6M and 8M Height PA Truss System
390mm*390mm for 10M Height PA Truss System
Color: Silver, Black, Others colours available on request
Main Tube Diameter: 50mm
Main Tube Thickness: 3mm

Brace Tube Diameter: 20mm, 25mm
Brace Tube Thickness: 2mm
Vice Tube Diameter: 20mm, 25mm
Vice Tube Thickness: 2mm
Truss Length: 0.5M, 1M, 1.5M, 2M, 2.5M, 3M, 3.5M, 4M Customizable.
Type: Straight, Arch, Ladder, Triangle, Square

4. Products Pictures:

Design Drawing:

Heavy Duty Line Array Speaker Truss Stand 20m/Sec Max Windspeed

3-Ways Corner:

Heavy Duty Line Array Speaker Truss Stand 20m/Sec Max Windspeed

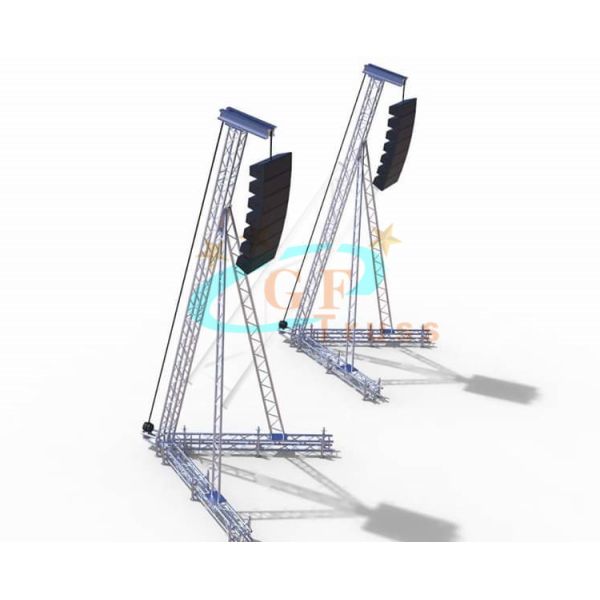

6M Height Line Array PA Truss System:

Heavy Duty Line Array Speaker Truss Stand 20m/Sec Max Windspeed
